Fiberglass Square tube

Fiberglass square tube is reinforced composite material consisting of continuous glass fiber yarn and resin, which are pulled by the thermal pultrusion moulding machine. The pultruded fiberglass square tube retains high strength property of glass fiber. At the same time the coating resin enables the tube good elasticity, anti-corrosion, hard to crack or break. High strength light weight, the specific gravity of fiberglass tubes is only 2/3 of aluminum, 1/4 – 1/5 of carbon steel. Therefore, fiberglass square tubes are substitute for metal square tubes.

Features

• ○ Light weight, only 70% weight of aluminum, high strength (300MPa~600MPa)
• ○ Perfect insulation, flame resistance, static free
• ○ Anti-corrosion, weather resistant, long working life
• ○ Perfect shaping, smooth surface and stable sizes
• ○ Multi-color options, good looking, easy and low cost maintenance
• ○ Machining process available, cutting, drilling, turning, polishing, tapping, etc.

Specification

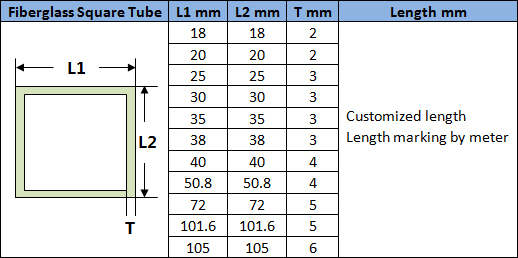

Fiberglass Square Tube Specification

Optional color: red, yellow, blue, green, orange, white, black, customized color
Kindly contact us if you order specification unlisted above or have other requirements.

Packing & Storage

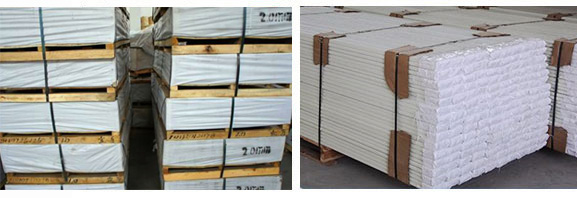

Fiberglass Square Tube - Packing
 Package: fiberglass tubes are packed in dust free poly bag. Outside is paper carton or wooden case.

Fiberglass Square Tube - Storage

(1) Lying flat horizontally.

(2) Keep away from impact, squeezing or any mechanical damage.

(3) Keep away from moisture, long time sun exposure or rain.

(4) Storage and transportation temperature: -40°C ~ +80°C

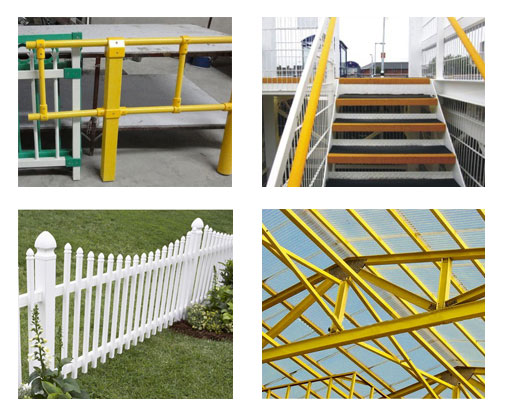

Application

Mainly as the structural support or crossbeam in building structure, chemical equipment and engineering, wastewater treatment equipment, also as safety guard fence and handrail in industrial equipment, mechanical equipment, etc.
