Fiberglass Flat Bar

Fiberglass flat bar is reinforced composite material consisting of continuous glass fiber yarn and resin, which are pulled by the thermal pultrusion moulding machine. The pultruded fiberglass flat bar retains high strength property of glass fiber. At the same time the coating resin enables the rod good elasticity, anti-corrosion, hard to crack or

break. High strength light weight, the specific gravity of fiberglass flat bar is only 2/3 of aluminum, 1/4 – 1/5 of carbon steel. Therefore, fiberglass flat bars are substitute for metal flat bars.

Features

• ○ Light weight, high strength (300MPa~600MPa)
• ○ Perfect insulation, flame resistance
• ○ Anti-corrosion, weather resistant, long working life
• ○ Perfect shaping, smooth surface and stable sizes
• ○ Multi-color options, good looking, easy and low cost maintenance
• ○ Machining process available, cutting, drilling, turning, polishing, tapping, etc.

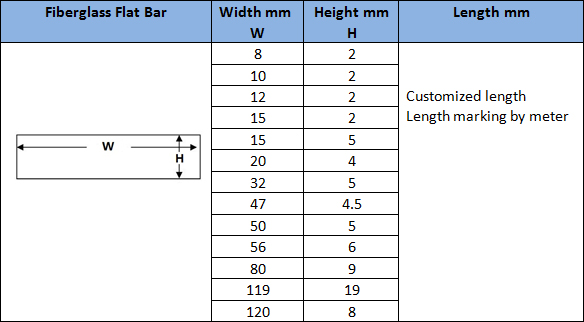

Specification

Fiberglass Flat Bar Specification

Optional color: red, yellow, blue, green, orange, white, black, customized color
Kindly contact us if you order specification unlisted above or have other requirements.

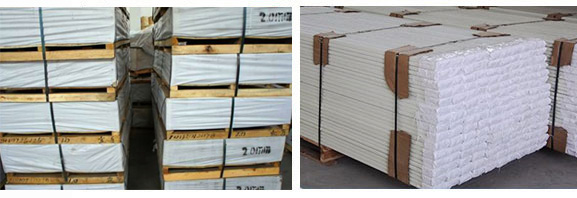

Packing & Storage

Fiberglass Flat Bar - Packing

Package: fiberglass flat bars are packed in dust free poly bag. Outside is paper carton or wooden case.

Fiberglass Flat Bar - Storage

（1） Lying flat horizontally.

（2) Keep away from impact, squeezing or any mechanical damage.

（3) Keep away from moisture, long time sun exposure or rain.

（4) Storage and transportation temperature: -40°C ~ +80°C

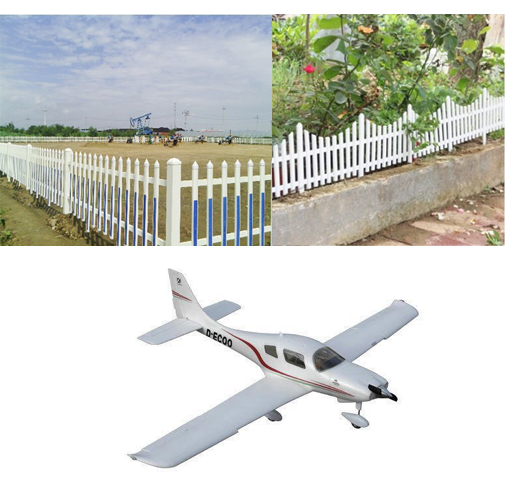

Application

Building material, furniture, decorations, safety fence, guard fence, baggage parts, toy parts, window bars, model frame, photo frame, picture frame, tool handle, etc.
